Tuesday, June 28, 2011
new dust skirt fro the CNC

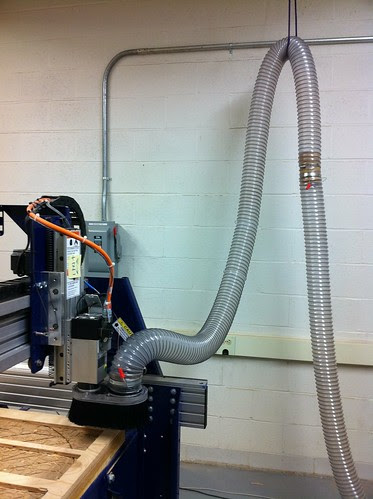

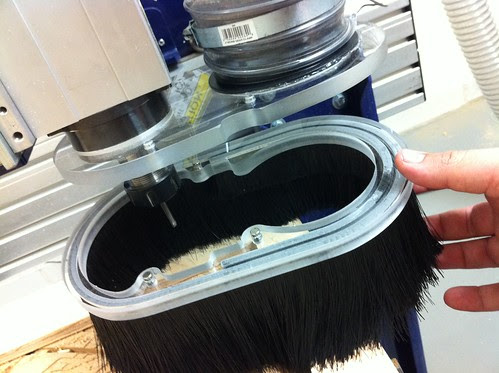

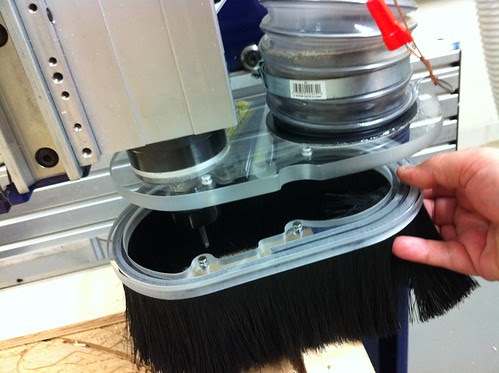

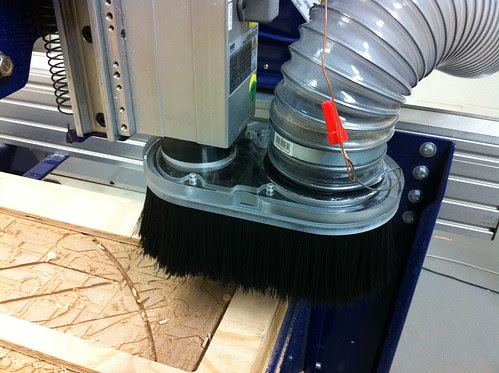

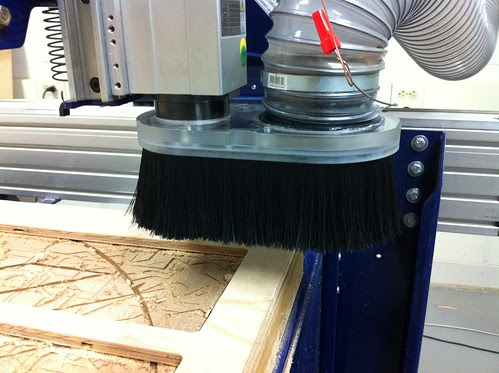

I freaking love our new dust skirt for our shopbot. The skirt itself snaps on with a bunch of rare-earth magnets. Also the skirt itself is denser making the dust collector WAY more efficient. It is going to make changing the bits a lot easier. Instead of moving the head up 6 inches in the Z axis, I can just set the safe Z at 3" and then there is always room to unsnap the skirt. No more stupid thumb screw in the back. I had to alter the hose and how it hangs. I think I might even change it again and make a hinged gantry thing with a hole in it that gets anchored to the wall. We shall see.
![New dust collection for cnc MAGNETS](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_t2oTy_gnO8XPibHEv5enbbSKuUjMAhmRiwYNYlHyRRRgZAX364sa0X1WF9E21mI5--AyrN8IlFwsrOn3V-NzijrgPAyn06KRc02S3v58rl4LaCorHEXRYzxlnJMk91UAk=s0-d)
![New dust collection for cnc MAGNETS](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_s5meNZek3rlCtvBD1q8gxh_u99HR0kjuf0oBiyPbEmdot0mhnyP8FOzYRaApEyQsQKzraRbJdiz_61UgikHyIF83SQkOJSdfwf9SY5JB3r7HZFekuCcdEsZJOoN-H6Gus=s0-d)
![New dust collection for cnc MAGNETS](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_tEOqtO0FNWIrY6Zlc_EQYRw0dVODpku11VQNd8GiyijcnGgJbSQJKLrRk32DJoy4ggr0wQcUfijATA_az21Y-HS7HiFQ0QRDb2o0wJX0wk2iu-falGJIsahR_t0-tkICw=s0-d)
![New dust collection for cnc MAGNETS](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_u8-KIOm8p9dkmQa61Wetnvtf652Hq0qmYGU28_udh9gem0jB2gLrsYkY_x6pJ0Omiqg5rmv1B2JcaPIQ4yDr5xsMO-HBjTi_M4BaS3OG6T-t7EpamDOylCI9E1mkOwN0k=s0-d)
![New dust collection for cnc MAGNETS](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_s-kbQnYhvctzgT0RgR3MUZjs-EInaVwyv9MLXZuWtdUm4PViequ7kJ-rq5N8PkySepSUR3aiC91xvtz1Q_LLMw0EkxDp1Fz8hWmbVmL1yz8sMuUV_1GjOLHkaD6GI2bg=s0-d)
